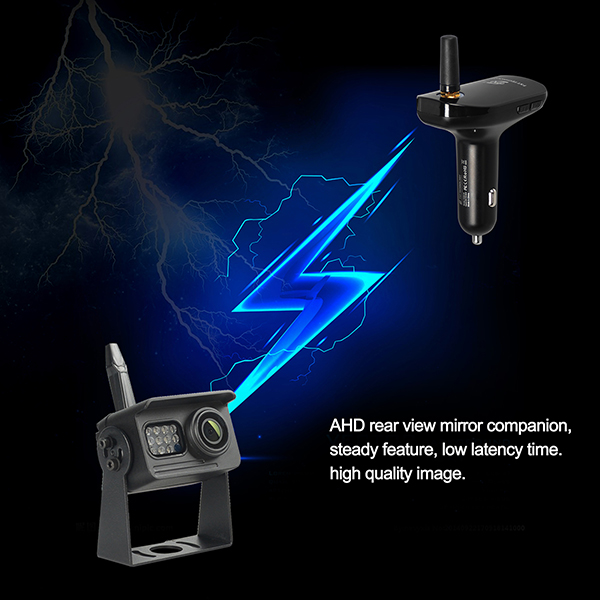

Black Color Universal Wireless Backup Cameras 2 Channel AHD Receiver
Wireless Backup Cameras 10 Inch Touch Screen Black Color 2 Channel AHD Receiver
Specification:
Receiver
| Operation Frequency | 2.4GHz--2.4835GHz |
| Transmission Power | 23dB |
| RX Sensitivity | -85dB |
| RF Bit Rate | 12Mbps |
| Spread Spectrum | FHSS |
| Video output format | 1080p |
| Coding Decompression method | H.264 |
| Power Supply | DC 10-30V |
| Operating Temperature | -20℃--70℃,RH85% MAX |
| Storage Temperature | -30℃--80℃,RH85% MAX |
| Size | 92x68x43mm |
| Weight | 185g |
H10 Rear View Mirror
| Built-in image sensor | 2 Mega pixel |
| Viewing angle | 130° |
| Video resolution | 1920*1080,S/30 frame |
| Storage compression method | MJPEG |
| Video format | MOV |
| Touch TP | Support, single touch |
| Storage Temperature | -20℃-70℃ |
| Operating Temperature | 0℃-50℃ |
| Operating humidity | 15-65%RH |
| SD Card | 128GB Micro SD Card[TF] |
| Standard Voltage | DC5V |
Camera
| Viewing Angle | 120° |
| Image Device | 1/2.7" COMS (HD) |
| IR Control | SMART IR-CUT 650nm Day/850nm Night Auto |
| Waterproof level | IP69k |
| Transmission Distance(barrier free) | 1650ft |
| Night Vision Distance | 33ft |
| Latency | less than 200ms |
| Power Supply | DC 12-32V |
| Power Consumption | 150mA/12V |
| Transmission Power | 26dB |
| Operating Temperature | -20℃--70℃,RH85% MAX |
| Storage Temperature | -30℃--80℃,RH85% MAX |
| Spread Spectrum | FHSS |
| Minimum Illumination | 0Lux |
Features:
1. First item 10 Inch AHD digital wireless streaming rear view mirror DVR
2. 10 Inch big touch screen and Anti-glare screen,1080p video resolution,viewing angle is 130°.
3. Support front and back 1080P dual recording, front and back camera split screen display at the same time.support playback online.
4. 120º Wide angle full glass lens,200W(1080P) Pixel sensor
5. IP69K Waterproof , waterproof droplets, anti-fog, dust-proof, scratch-proof. Transmission power is 26 DBM.
Why choose you?
1. We always reply customer’s email within 24-hours.
2. Have Professional QC to test parts before shipment. guarantee 100% good quality of parts before making shipment.
3. All parts with 1 year warranty, All quality certificate are available, such as FCC CE ROHS, fast lead time, competitive price, and after-sales service.
4. All parts are with wireless signal system and waterproof for all cameras.
